Creating the base AWS Environment
1. Creating the base AWS environment using AWS CloudFormation Template
You can use the CloudFormation template launch button below to create the infrastructure in same AZ with the 2 subnets, NAT Gateway, Internet Gateway, and the EC2 instances.

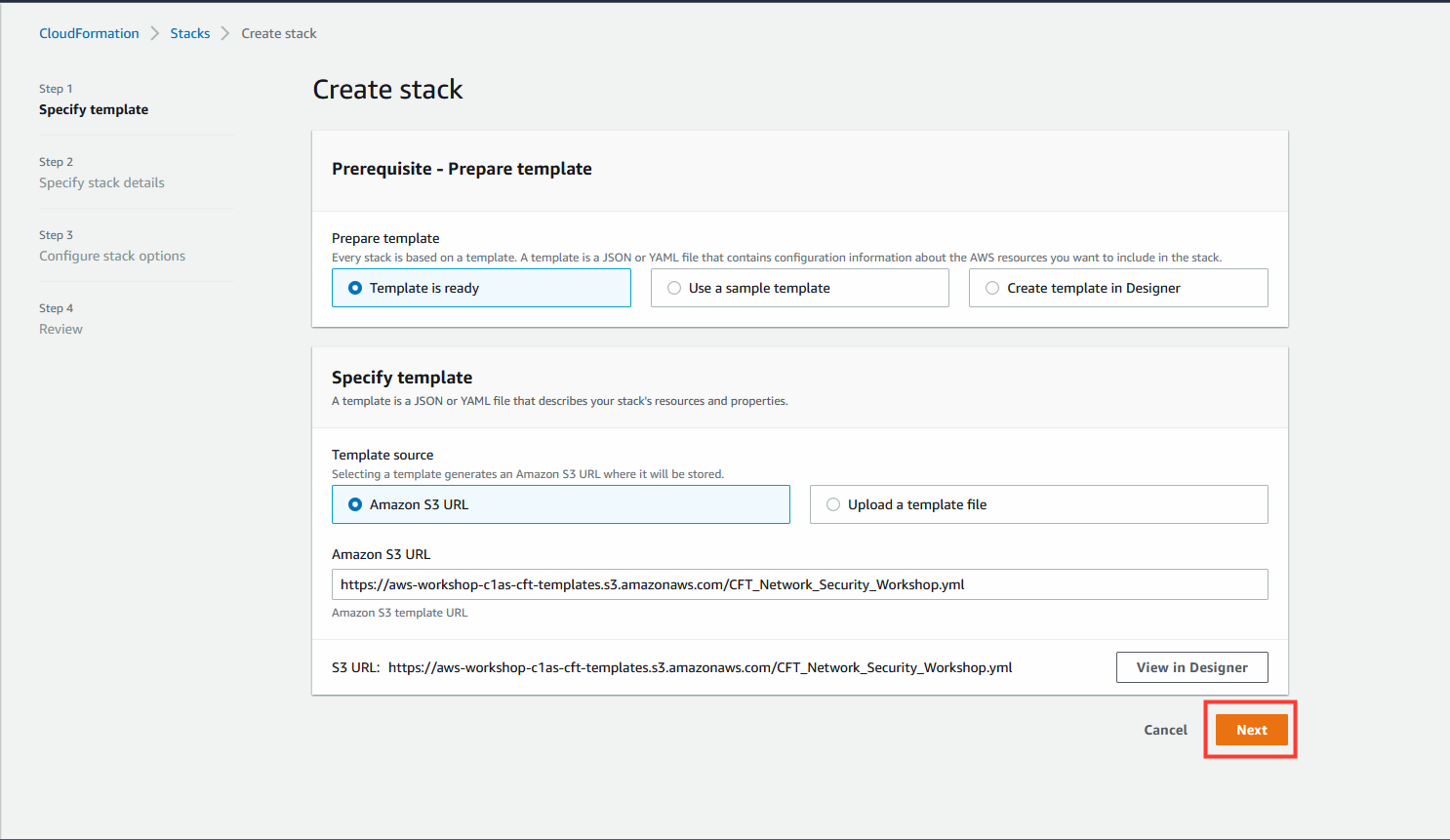

2. Uploading the CloudFormation Template
- Click on Next
3. Specifying additional stack parameters
A Key Pair is required before continuing this CloudFormation deployment. If you need help creating a Key Pair -> Create a key pair
-> CLICK HERE to see how to create key pair
AWS Console -> EC2 -> Key Pairs -> Create key pair
-
Stack Name:
Network-Security-Workshop -
InspectionVPCCIDR: the CIDR that you want to use for the VPC. You don’t need to change it, if you don’t want to change the default configuration.
-
KeyPair: Your KeyPair name
-
MyPublicIP: Your public IP in CIDR. (e.g. 191.162.228.91/32 . You can grab it using a few tools or websites (https://ipinfo.io/ip). It will be use to only allow your IP to access the vulnerable application (DVWA))
-
ProtectedPrivateSubnetAZ: the AZ what you want to use to your Private subnet.
-
ProtectedPrivateSubnetCIDR: the CIDR that you want to use for the Private. You don’t need to change it, if you don’t want.
-
ProtectedPublicSubnetAZ: the AZ what you want to use to your Public subnet.
-
ProtectedPublicSubnetCIDR: the AZ what you want to use to your Public subnet. You don’t need to change it, if you don’t want to.

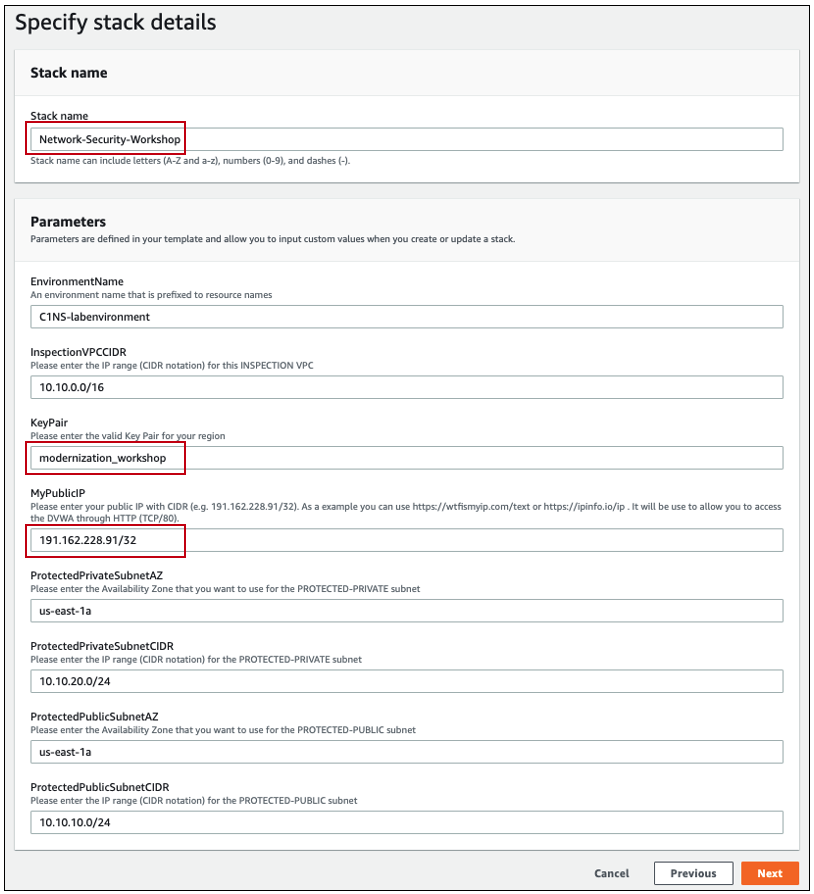

3.1. Stack details example:

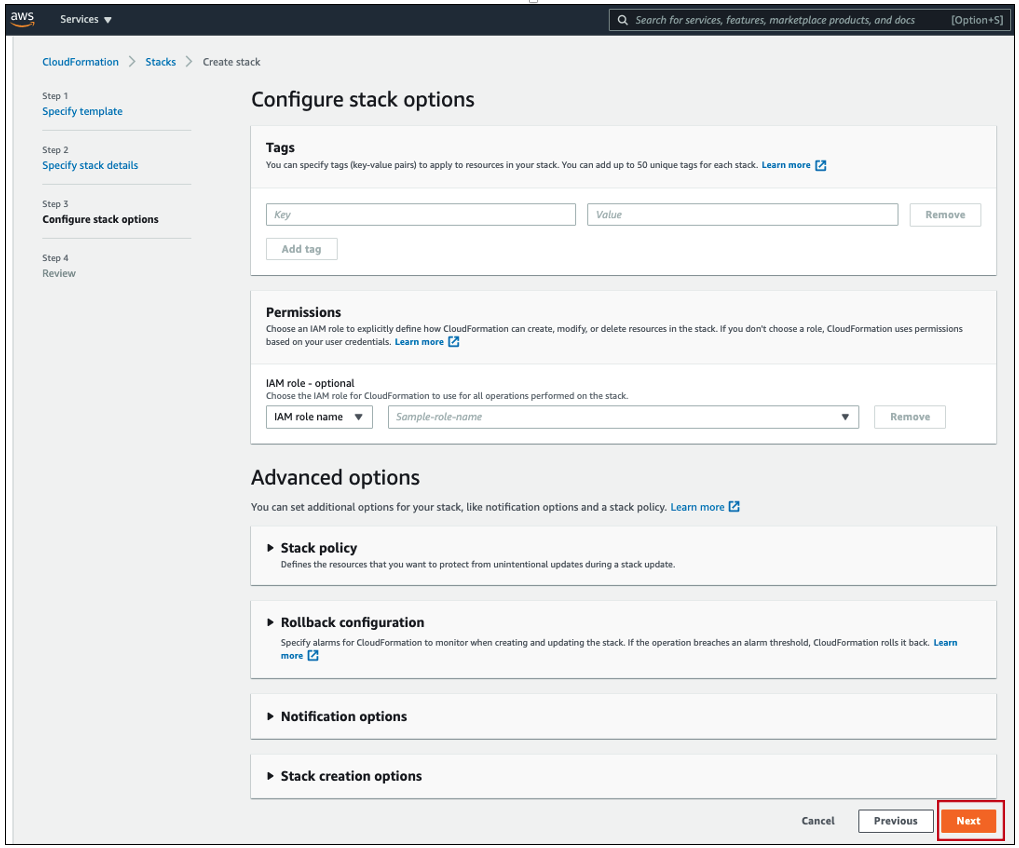

4. Configure stack options
Leave as fields as default and click Next, or optionally define tags to the environment if desired.

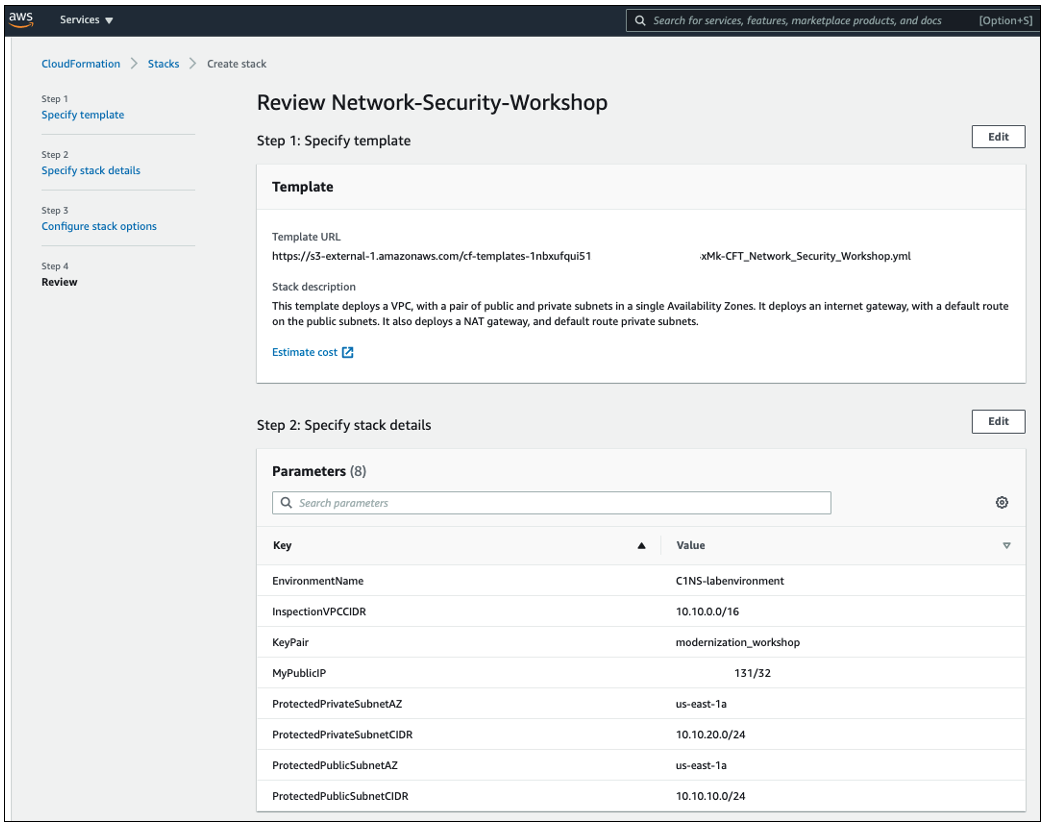

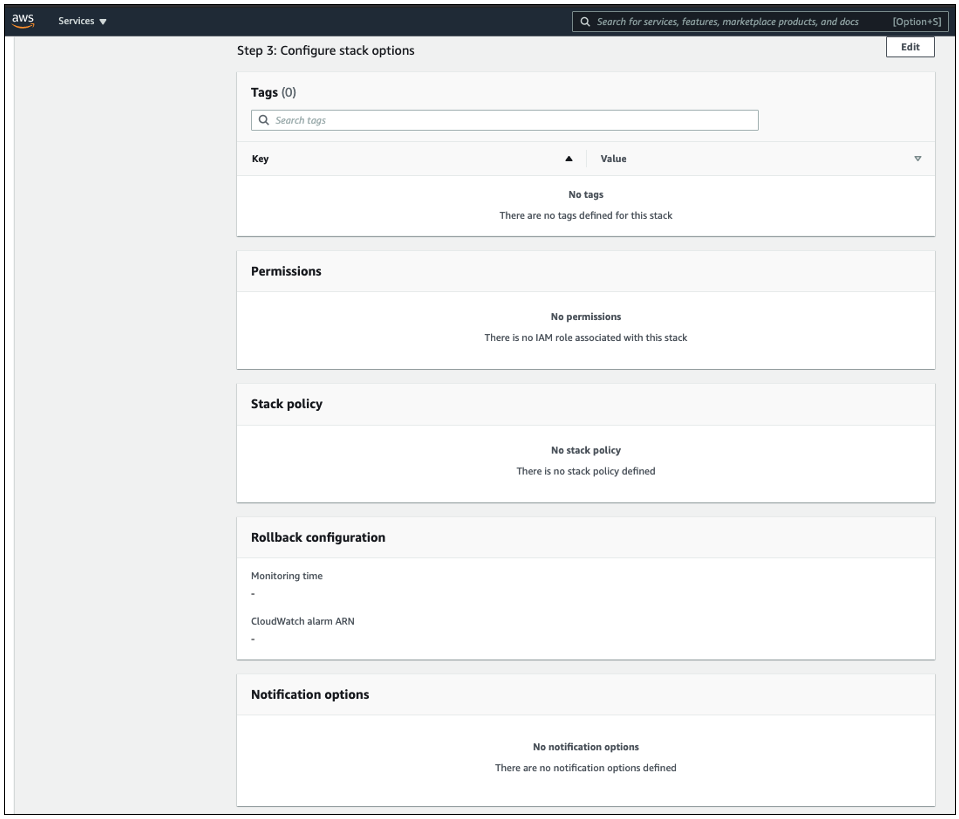

5. Review the template parameters

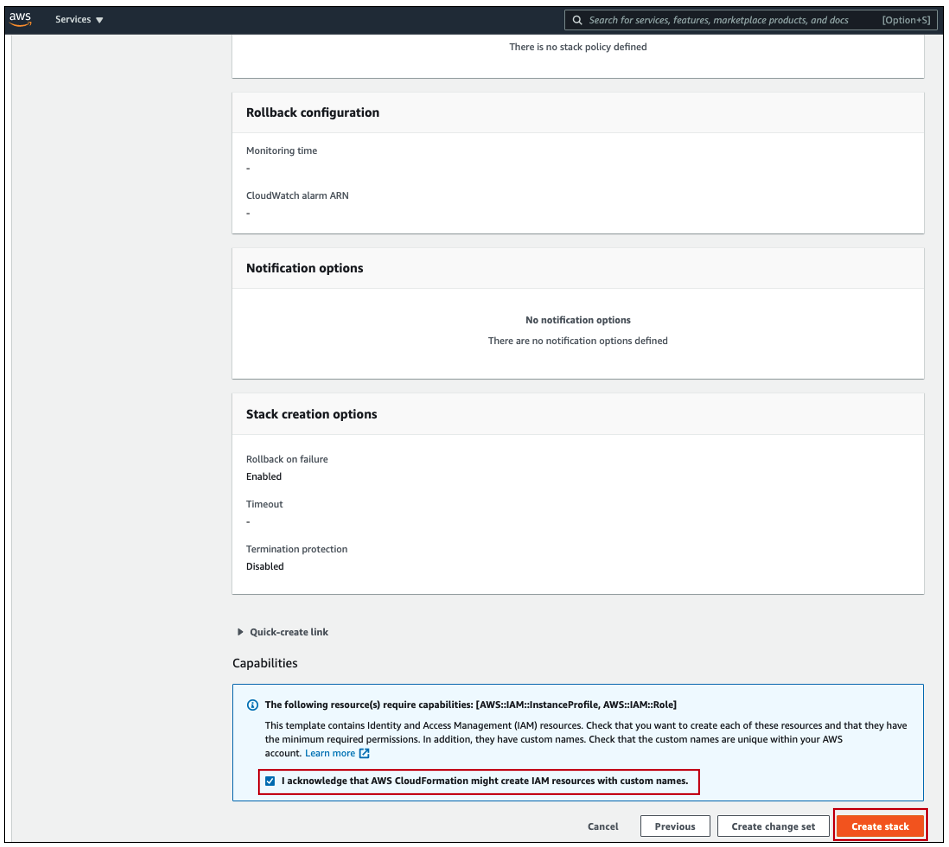

- Mark the checkbox the “I acknowledge… “
- Click on Create Stack

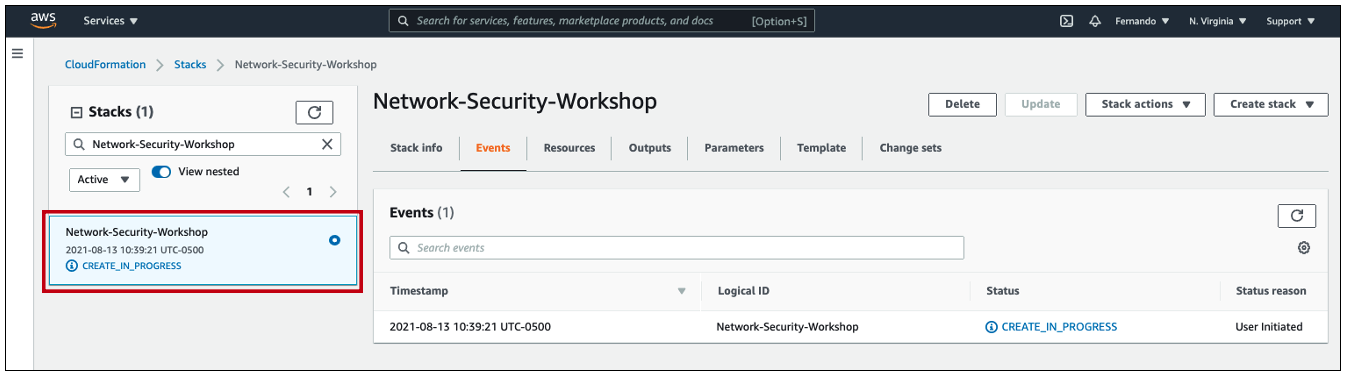

6. Follow up the events during creation of the stack.
- Select the Events tab
- Click Refresh

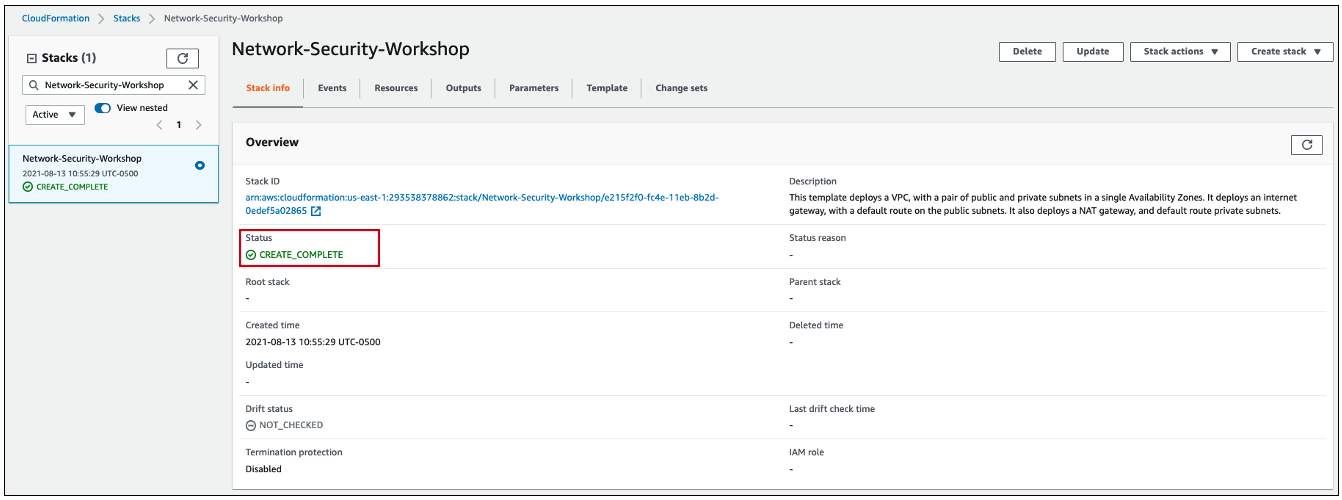

7. Ensure the stack status has reached Create_Complete.
- Select the Stack info tab
Now it’s time for us to integrate Cloud One Network Security with AWS ☁️ 💻 🚀
