Deploy Cloud One - Network Security

Architecture for the lab

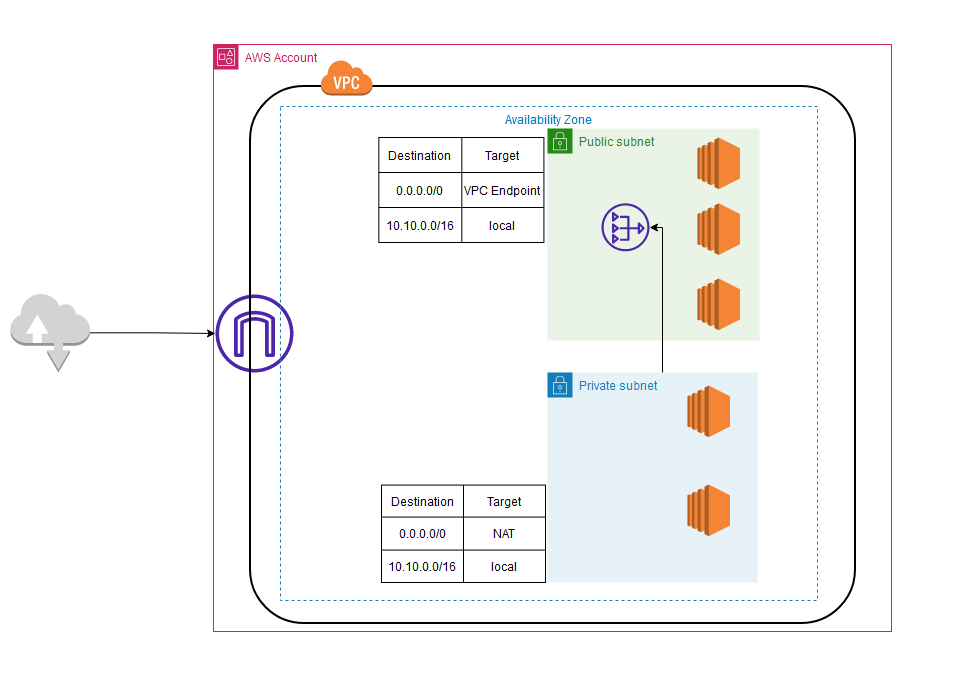

To simulate a real customer environment, we will use a pre-built CloudFormation template that will create the following resources all in the same Availibility Zone (AZ):

  • 2 - Subnets
  • 1 - NAT Gateway
  • 1 - Internet Gateway
  • 5 - EC2 instances
  • 1 - Cloud One - Network Security Instance

As a recommended deployment method in the Cloud One - Network Security documentation, we will use the follow topology on the AWS environment for our lab.

Endpoint_Deployment
