Deploy the Network Security Endpoint

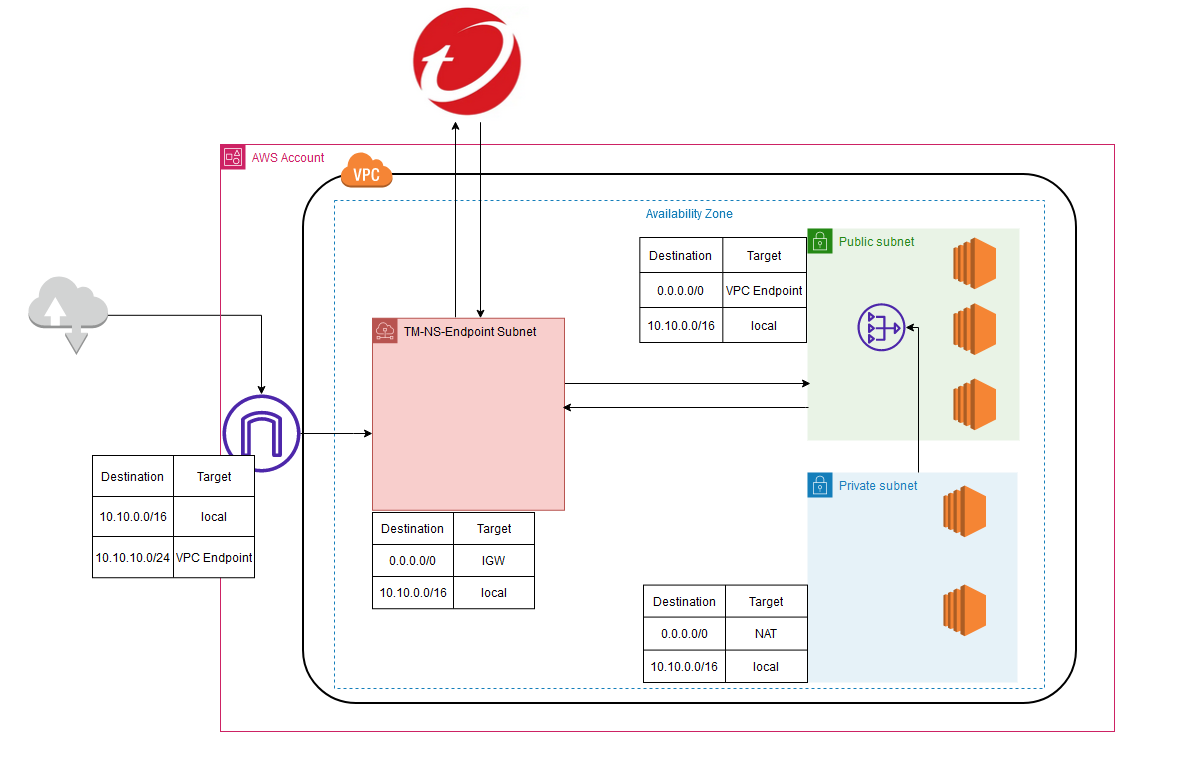

Deploying Network Security as a managed service requires only a few steps and has no overhead management during or after deployment. With managed service, the traffic in your environment is routed through Network Security endpoints to be inspected. The only items you manage are the Network Security endpoints in your cloud environment; the virtual appliances, as well as any additional infrastructure requirements, are managed by Network Security.

C1NS1

1. In the Cloud One Network Security console.

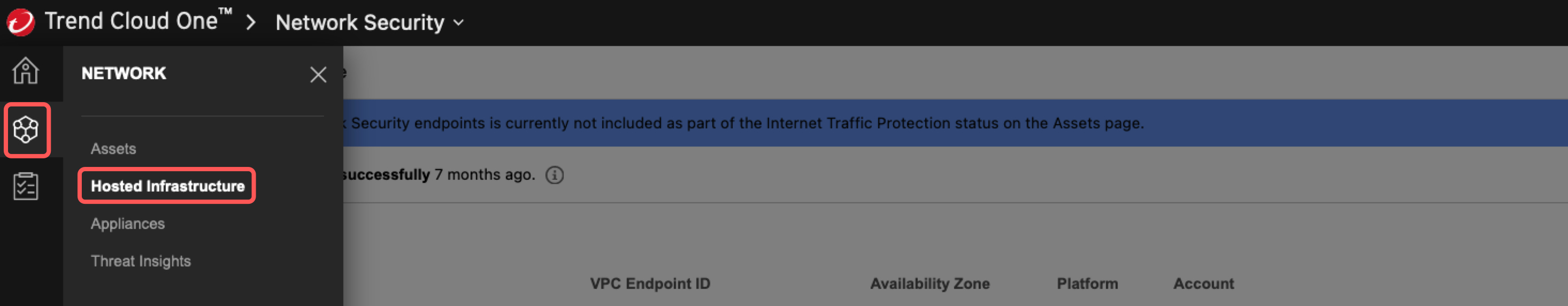

  • Click on the Network tab
  • Select Hosted Infrastructure

C1NS1

2. Select the VPC that you will deploy the Network Security managed service.

  • The ID of the VPC can be found in the Outputs tab of the base environment CloudFormation template.

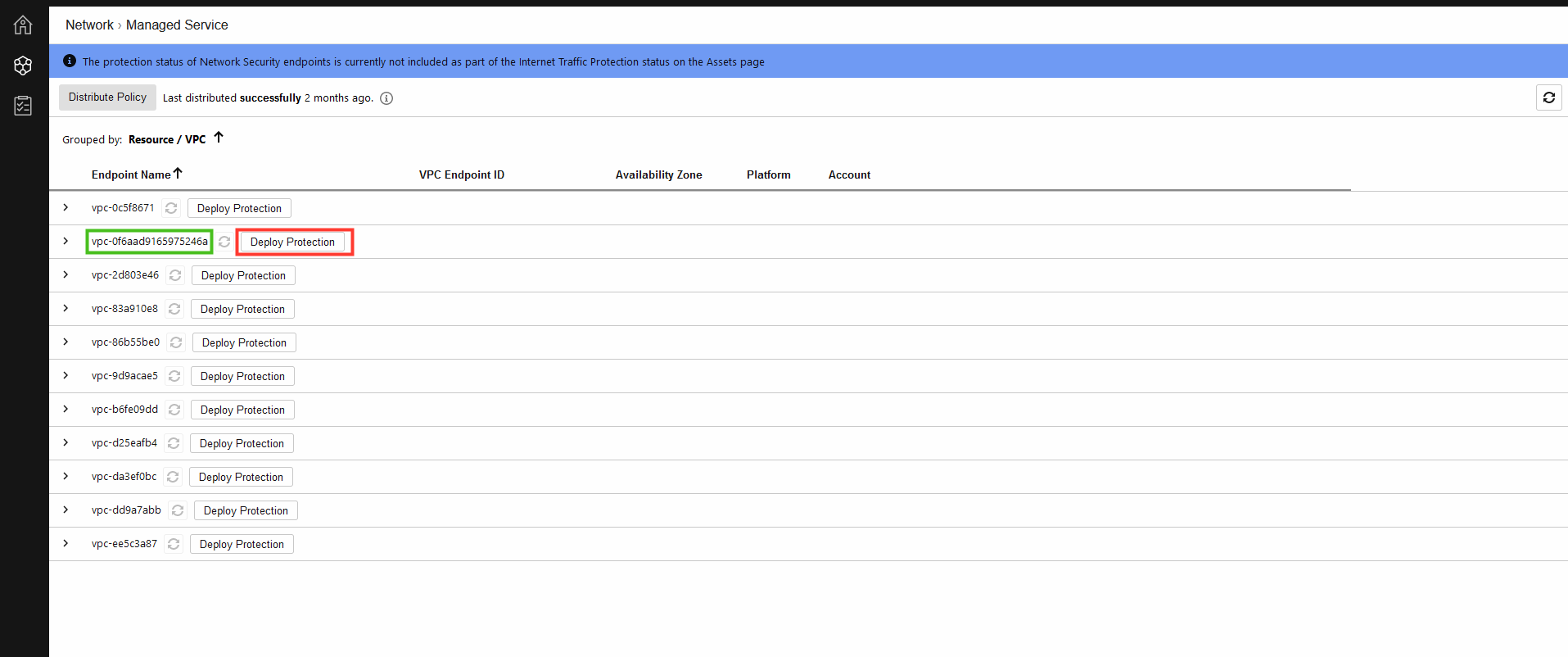

  • Once you have located the VPC. Click on Deploy Protection C1NS1

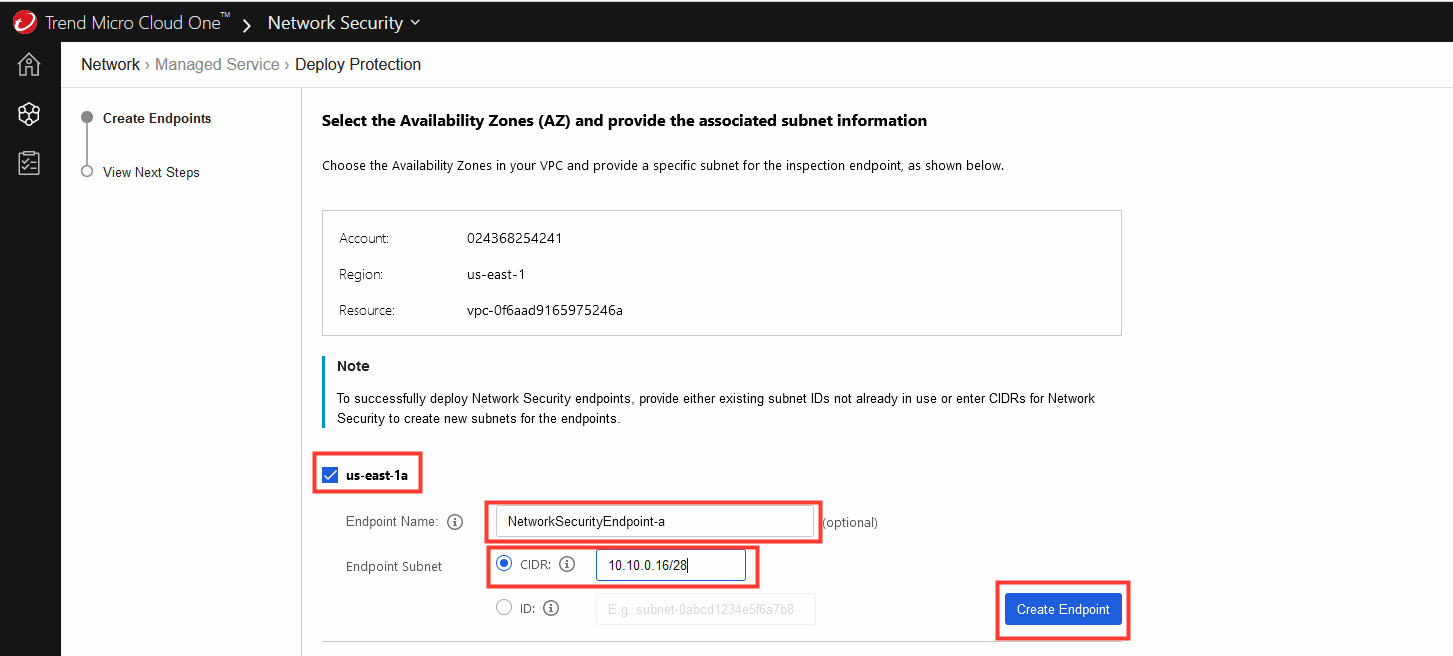

3. Choose the Availability Zones in your VPC and provide a specific subnet for the inspection endpoint.

  • Check the box for us-east-1a
  • Optional - Define a name for the subnet
  • Select CIDR
  • Paste 10.10.0.16/28
  • Click Create Endpoint

It takes up to 10 minutes to deploy the Endpoint.

C1NS1

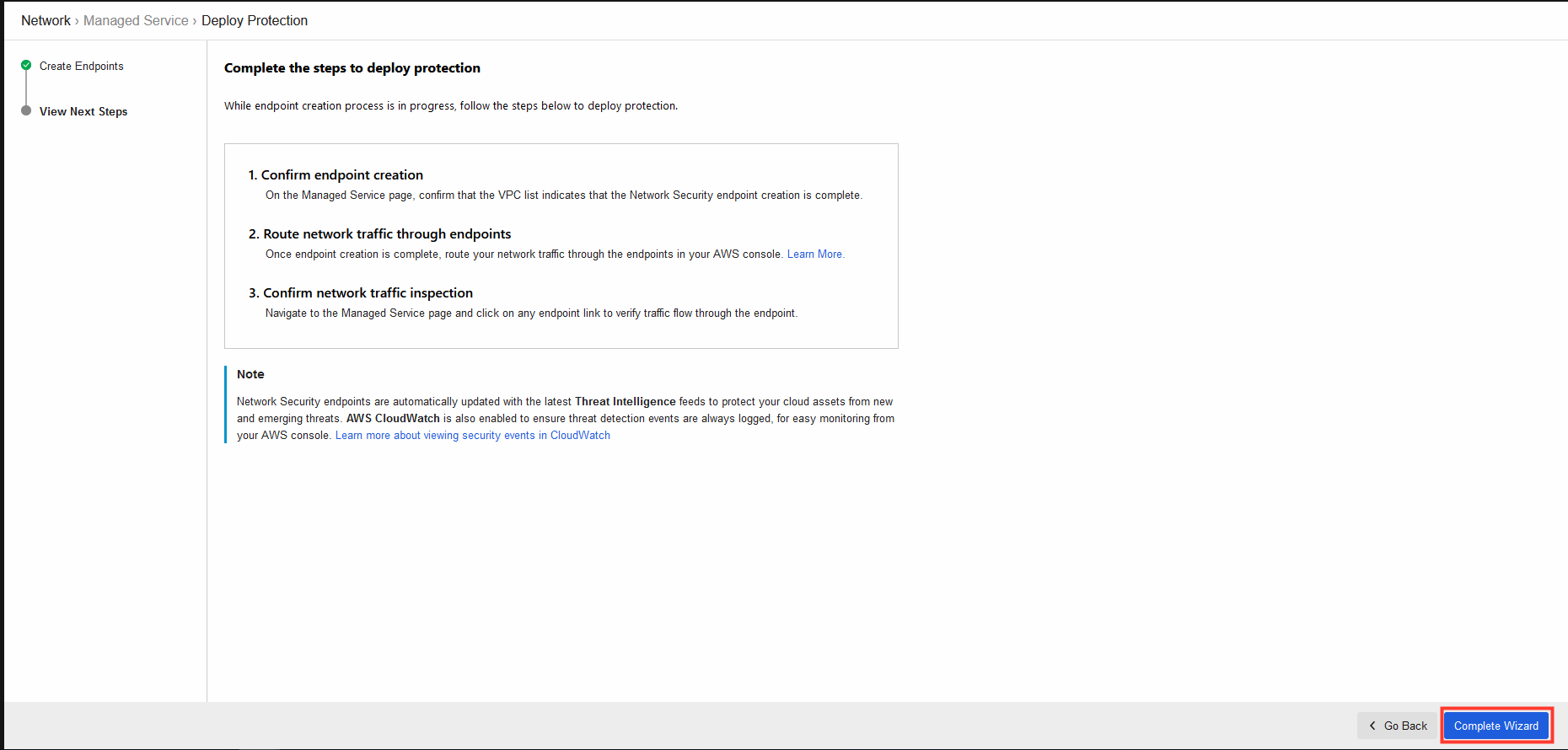

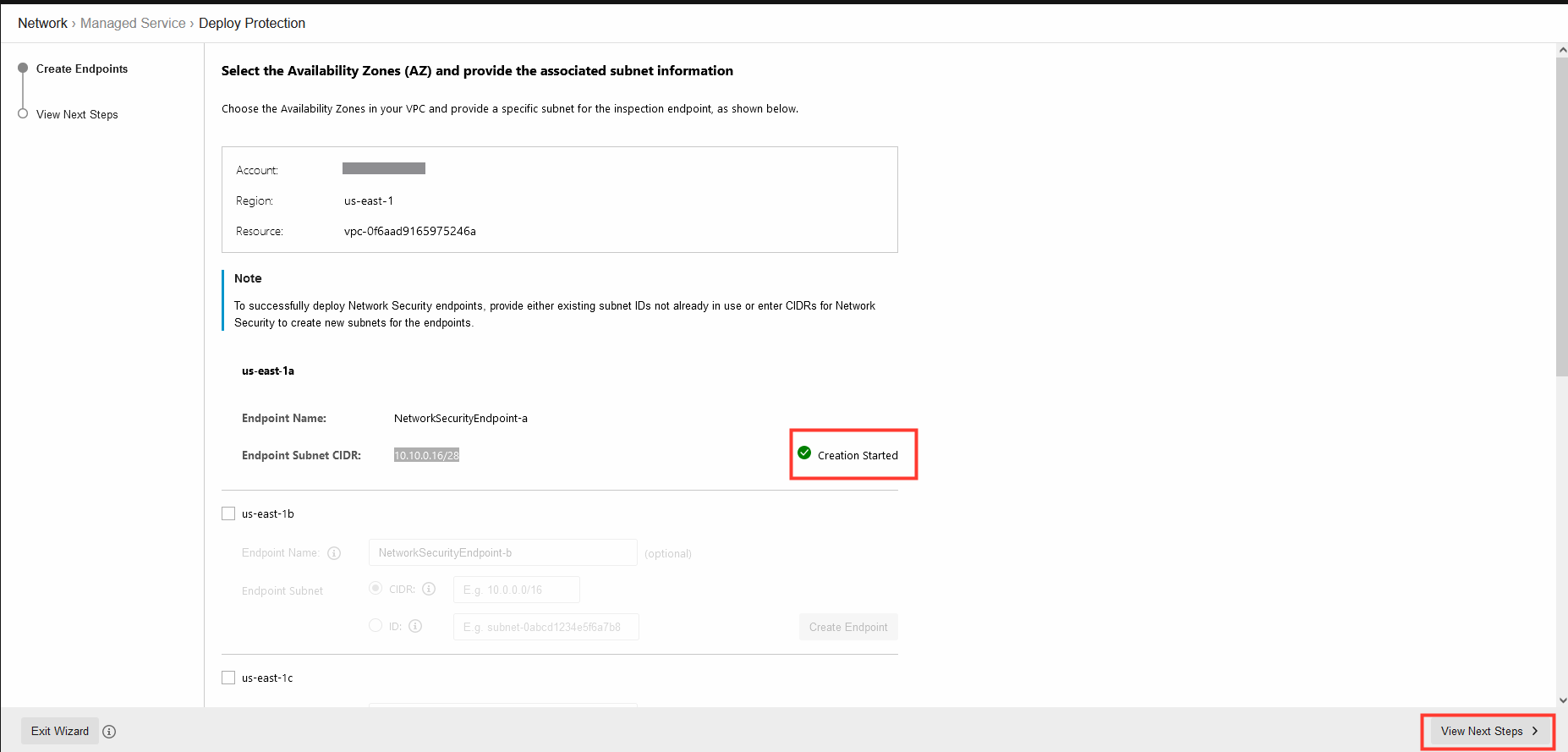

4. Once the creation has started click on View Next Steps.

  • Click on Complete Wizard. C1NS1 C1NS1

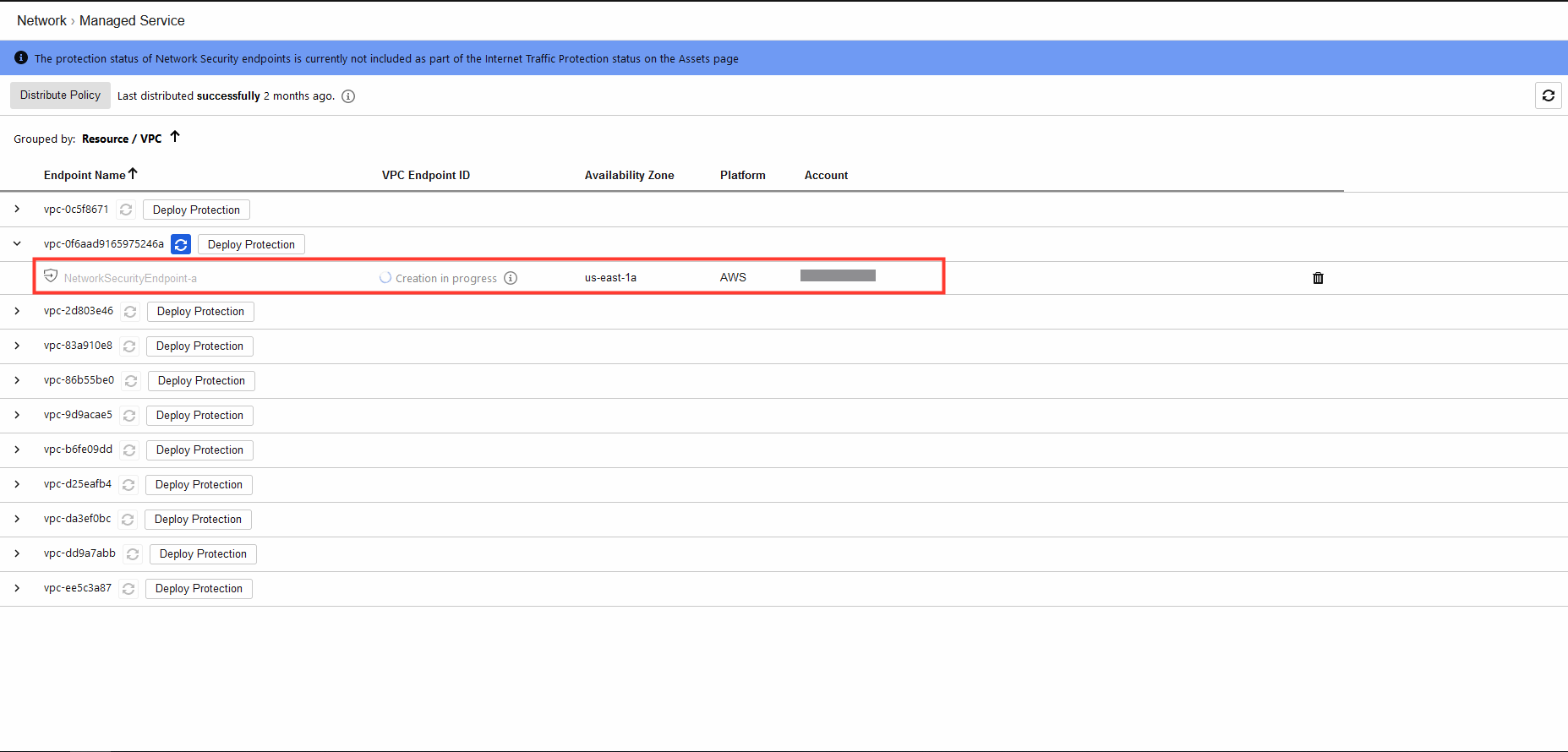

5. Confirm endpoint creation.

  • In Cloud One - Network Security > Network > Managed Service.

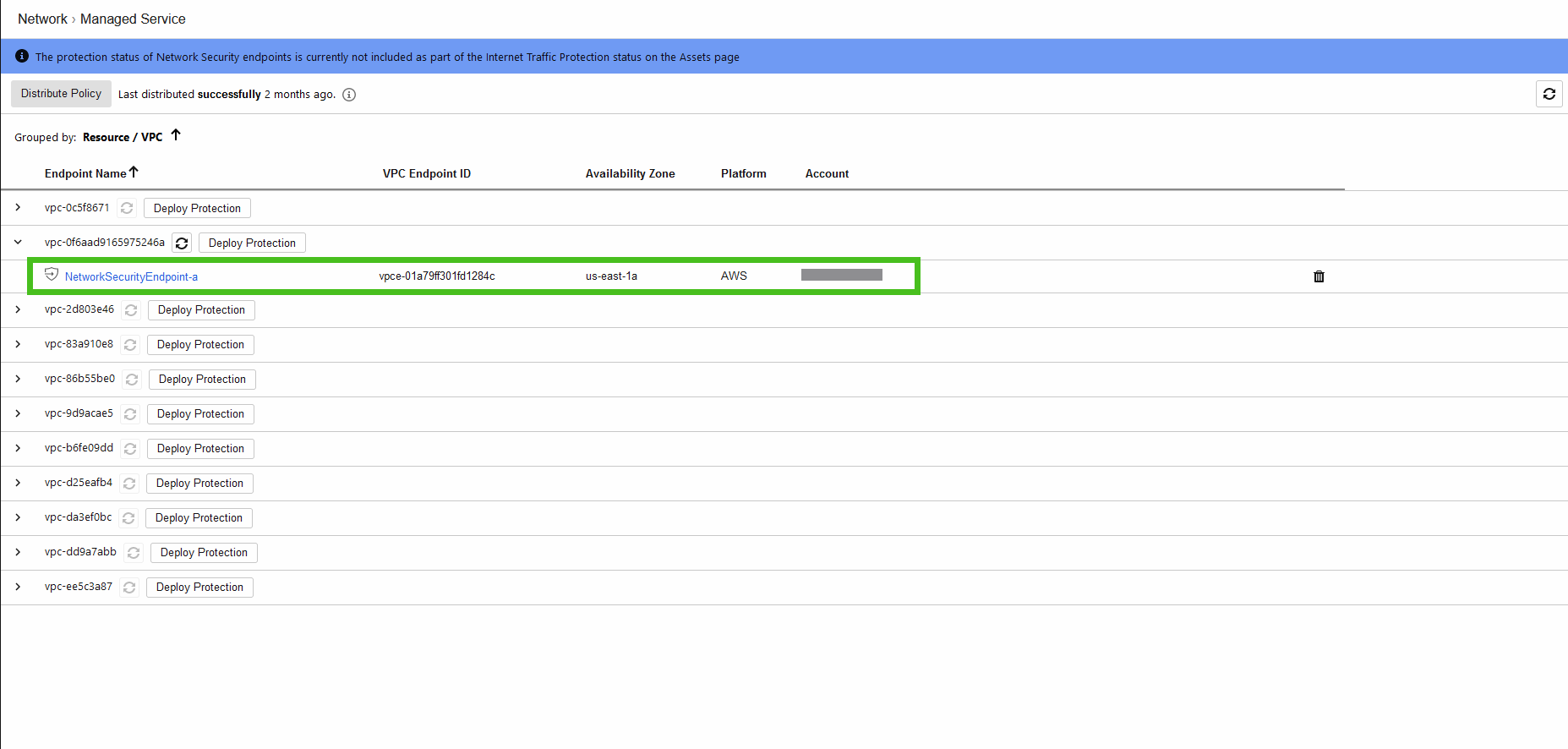

  • Expand the VPC to see the status of the enpoint. C1NS1 C1NS1

6. Route network traffic through endpoints.

After your Network Security endpoints have successfully deployed, modify the traffic routes in your cloud environment so that traffic is directed to the Network Security endpoints for inspection.

  • Navigate to the AWS Console > VPC.

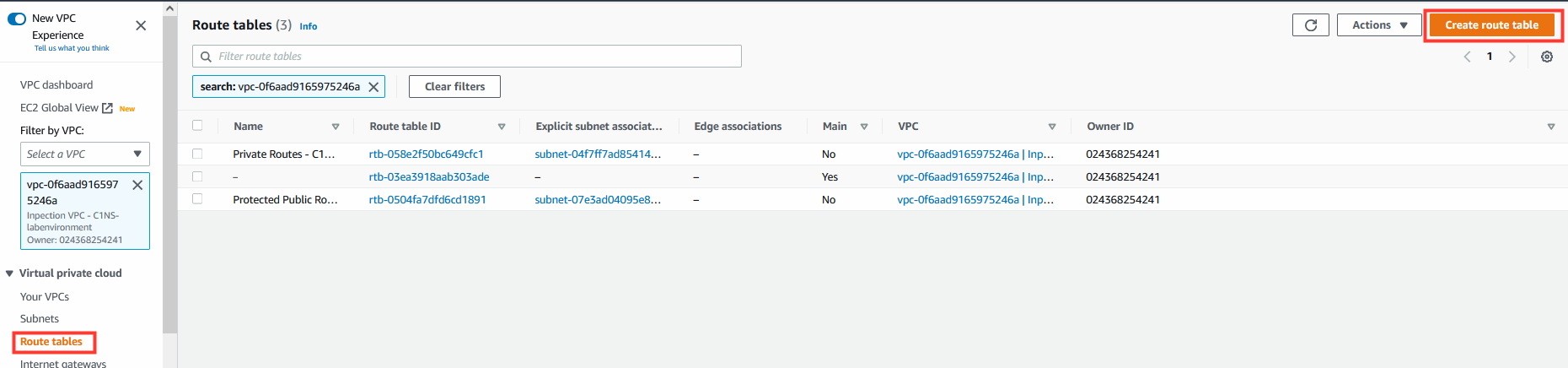

  • Under Virtual Private Cloud, click Route Tables.
  • Click Create route table.

C1NS1

7. Creation of Edge Route Table.

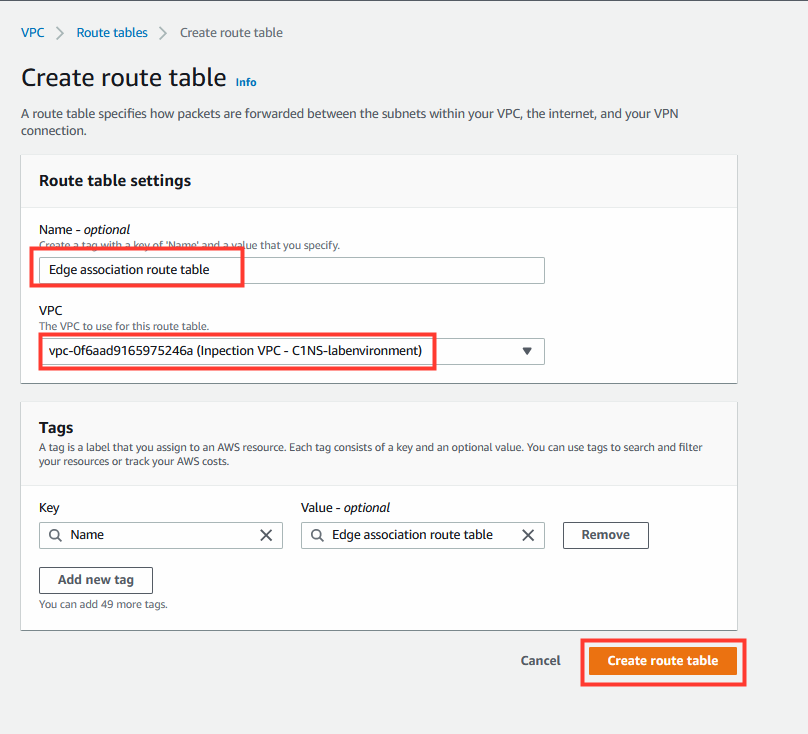

  • Name: (optional) Edge association route table
  • Select your VPC ID.
  • Click on Create Route Table.

C1NS1

7.1 Edit the Route Table routes.

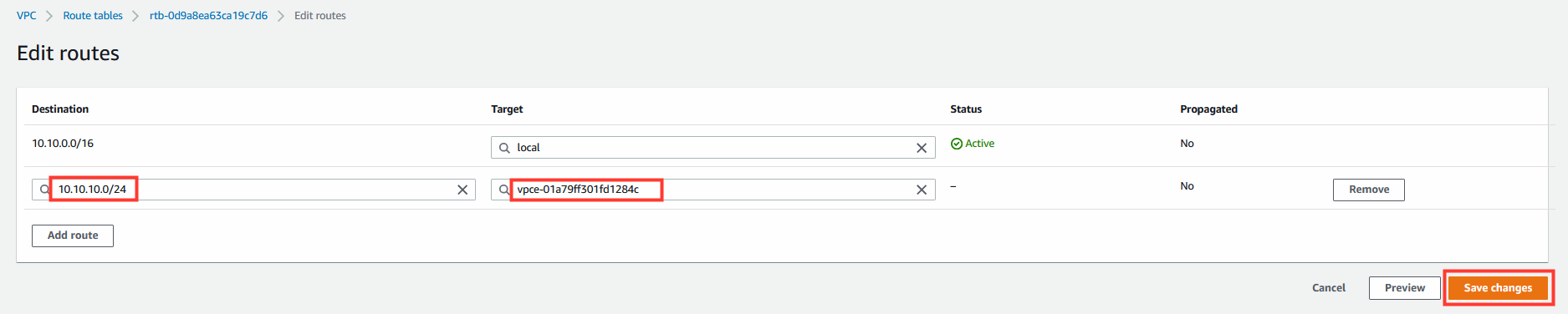

  • Add the following route:
Destination   | Target
10.10.10.0/24 | <VPC Endpoint>

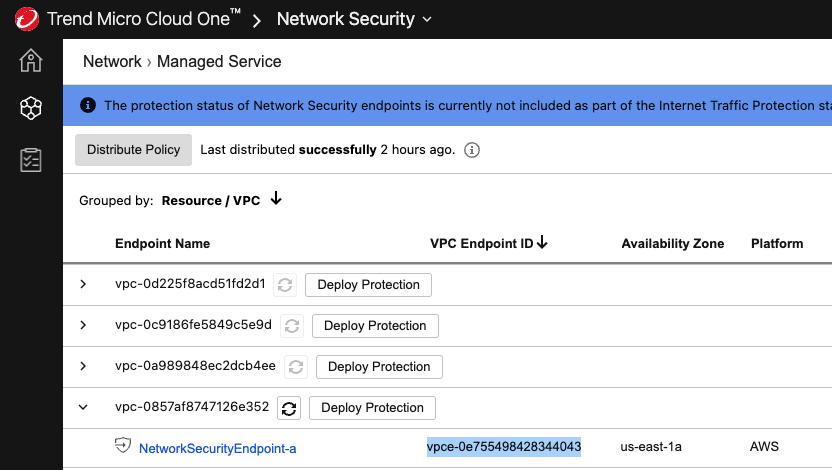

ℹī¸ You can find the vpc endpoint on the Cloud One console like you can see in this image here:

C1NS1

  • Click Save Changes.

C1NS1

7.2 Create the edge association.

Create an edge association for this route table.

  • Select the edge association route table.

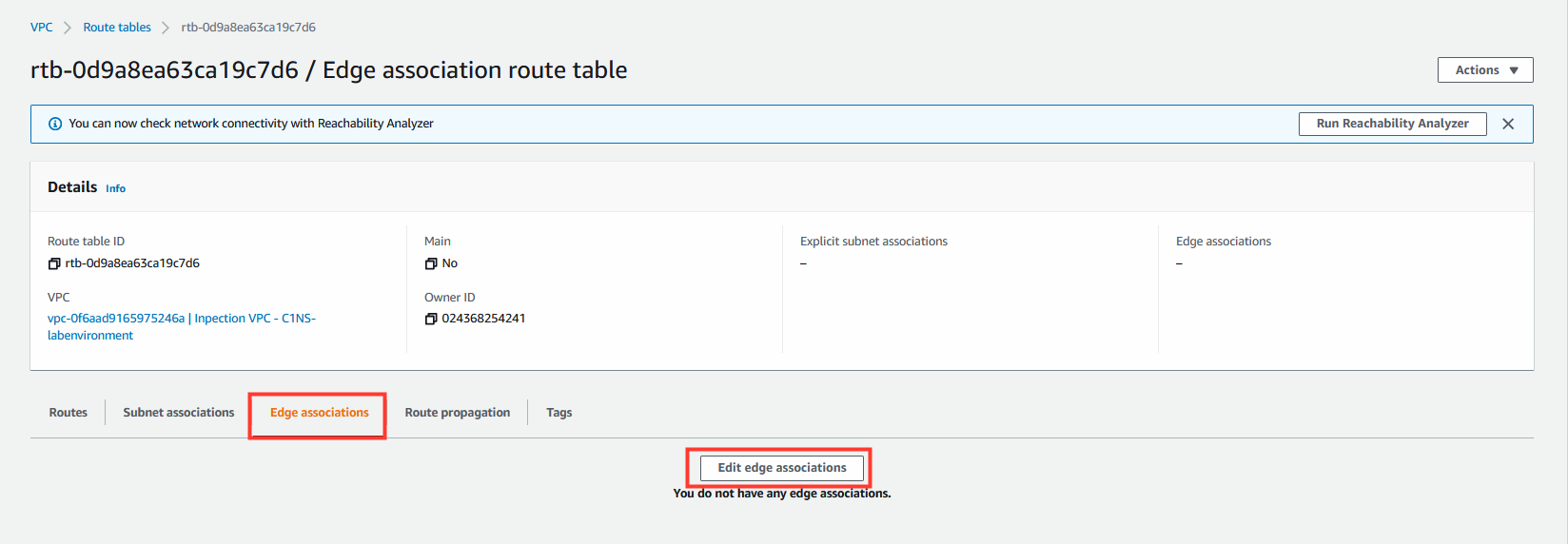

  • Click on the Edge Associations tab.
  • Click Edit edge associations.

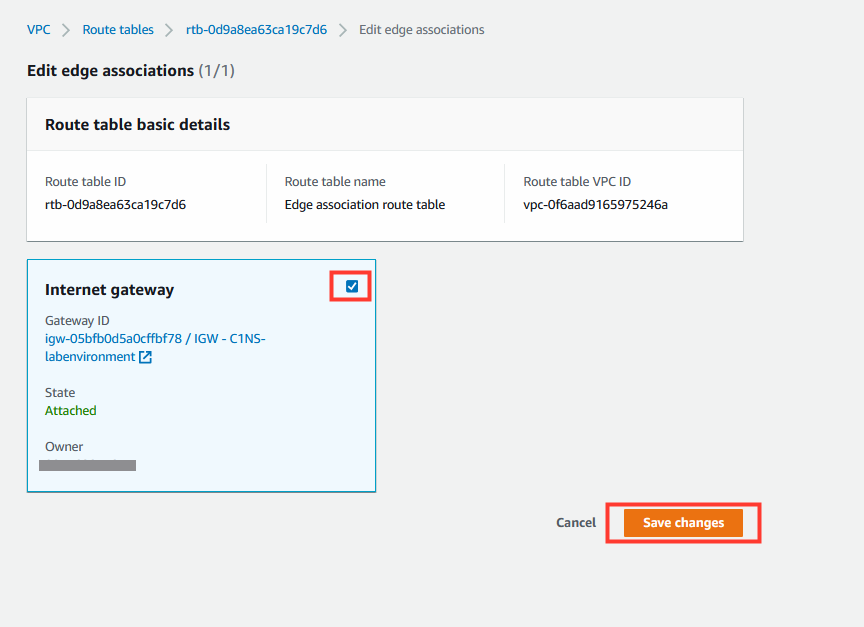

  • Select the Internet Gateway and any Virtual Private Gateways that you want to protect, and then click Save changes.

C1NS1 C1NS1

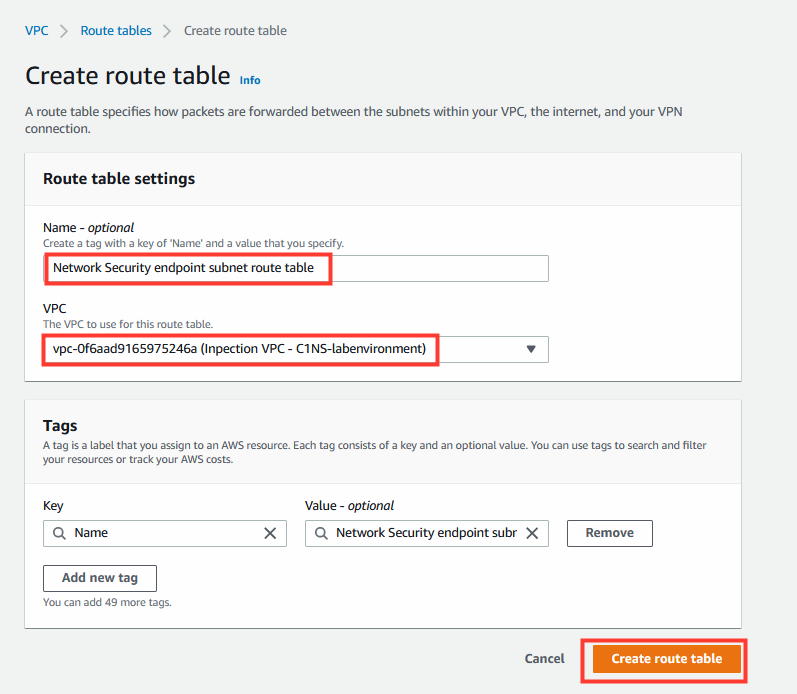

8. Create the Network Security endpoint subnet route table

This route table is associated with the Network Security endpoints that you deployed for this VPC.

  • Name: (optional) Network Security endpoint subnet route table
  • Select your VPC ID.
  • Click on Create Route Table.

C1NS1

8.1 Edit the Route Table routes.

  • Add the following route:
Destination   | Target
0.0.0.0/0     | <IGW>
  • Click Save Changes. C1NS1

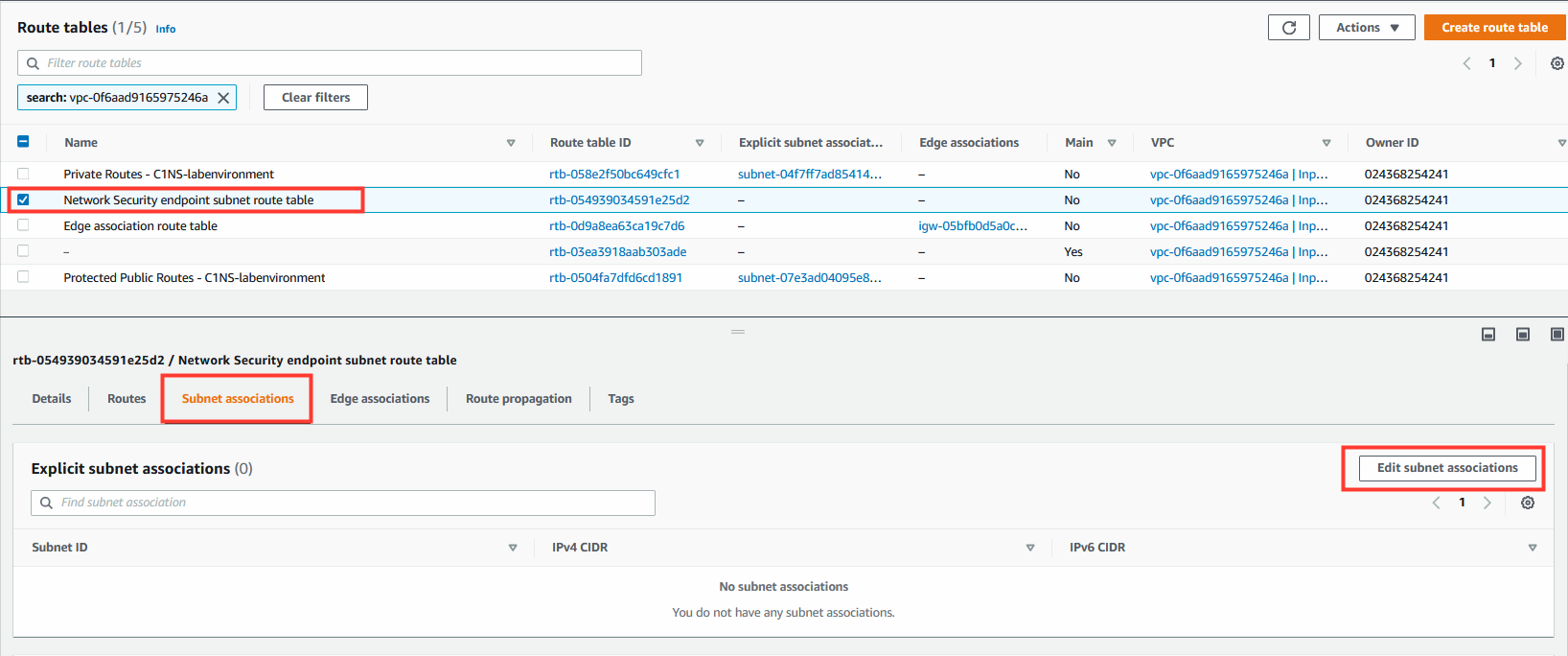

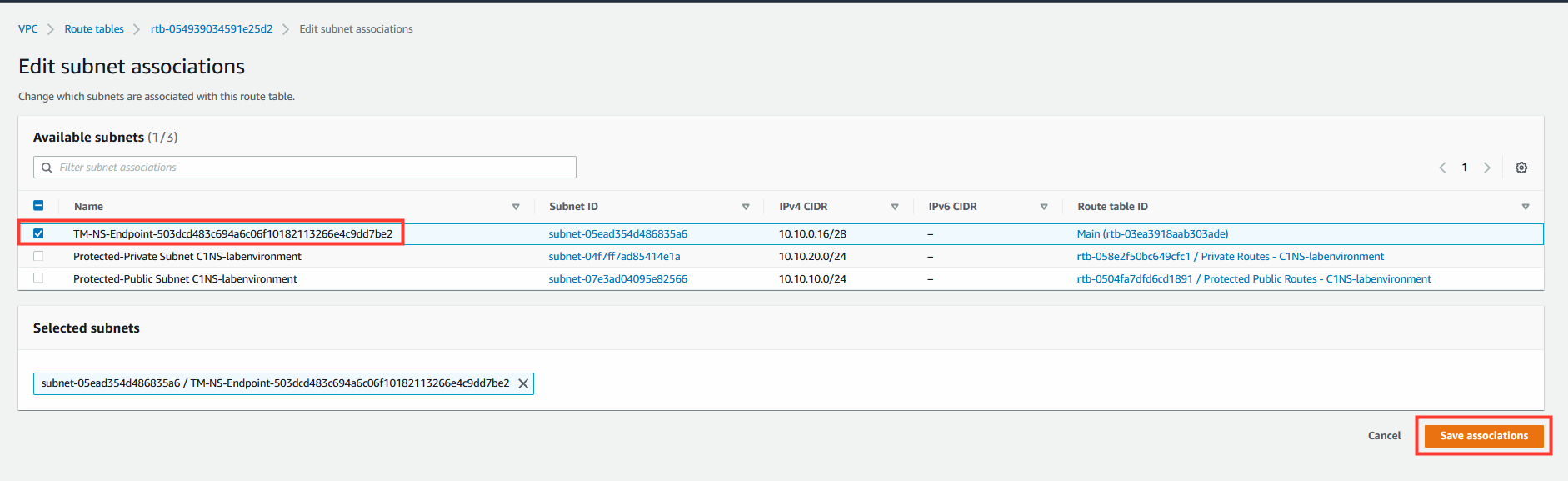

8.2 Create subnet association.

  • Select the Network Security endpoint subnet route table.
  • Click the Subnet Associations tab.
  • Click Edit subnet associations.
  • Select the subnet that contains the Network Security endpoint.
  • Create a subnet association for this route table for the subnet that contains a Network Security endpoint.

C1NS1 C1NS1

9. Modify the public subnet route table.

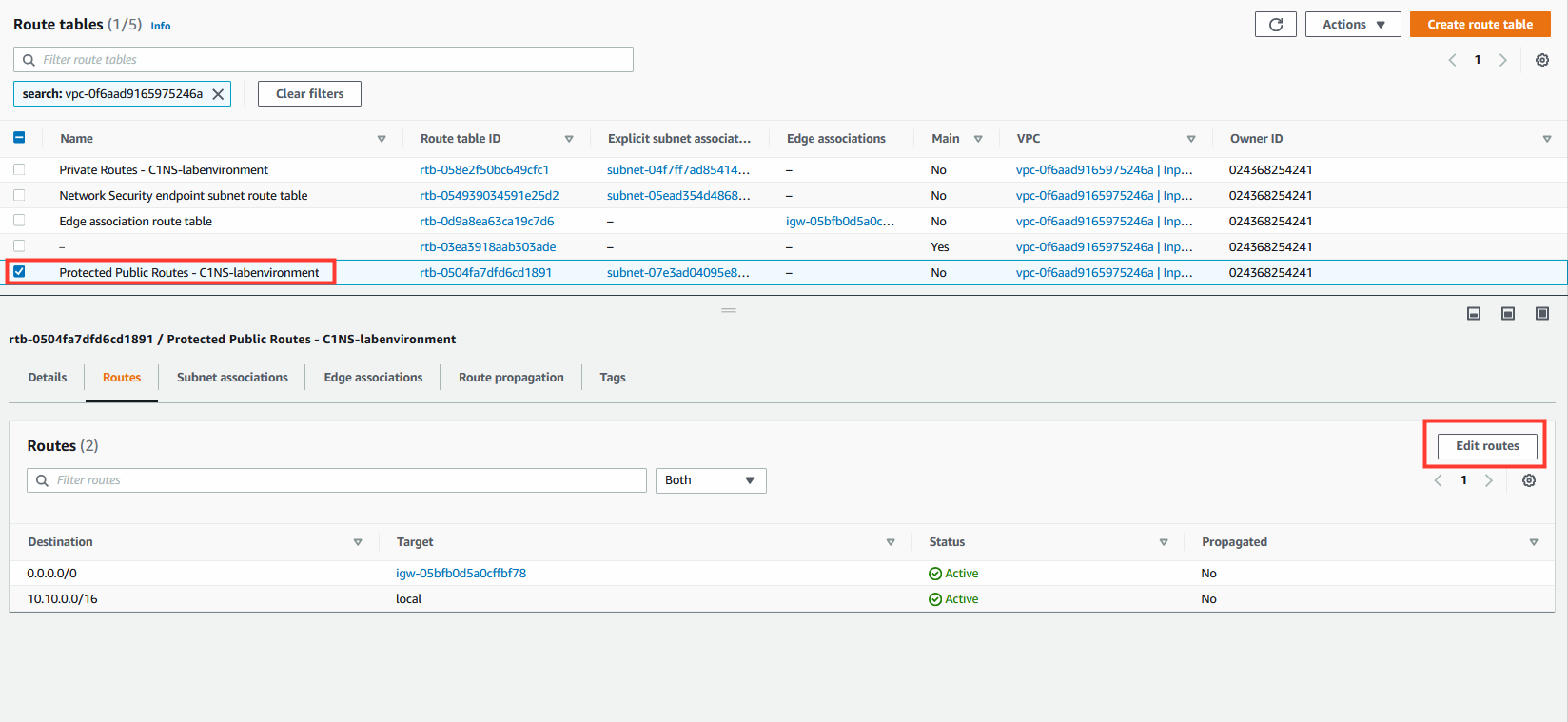

  • Select the Route Table named: Protected Public Routes - C1NS-labenvironment
  • Select the Routes tab.
  • Click on Edit routes.

C1NS1

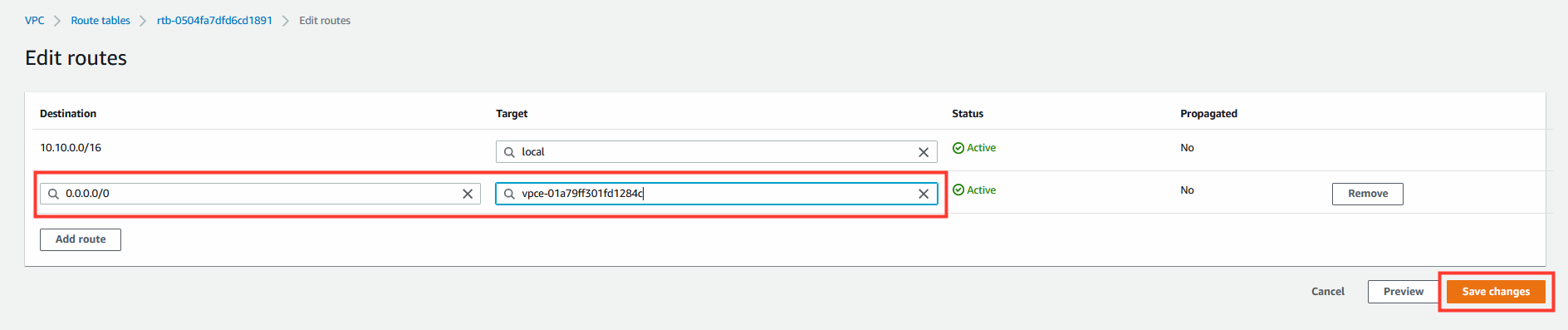

  • Modify the route
  • Click on Save Changes.
Destination   | Target
0.0.0.0/0     | <VPC Endpoint>

C1NS1

Et voila, we just generated configured the routing for the managed service enpoint in our AWS environment 🤩 ☁ī¸ 🤖 🚀
